Nomally we need to exercise everyday, to keep fit and healthy. of course we need to use some technical skills to help us. That’s steroids or peptides.
It takes a lot for us to afford it. so, our store specially helped you and give suggestions. we provide all Packing solutions.
ZX Vial Supplies provides all kinds of bodybuilding packing materials, with best quality and solutions. you can get products, also get a free schedule!

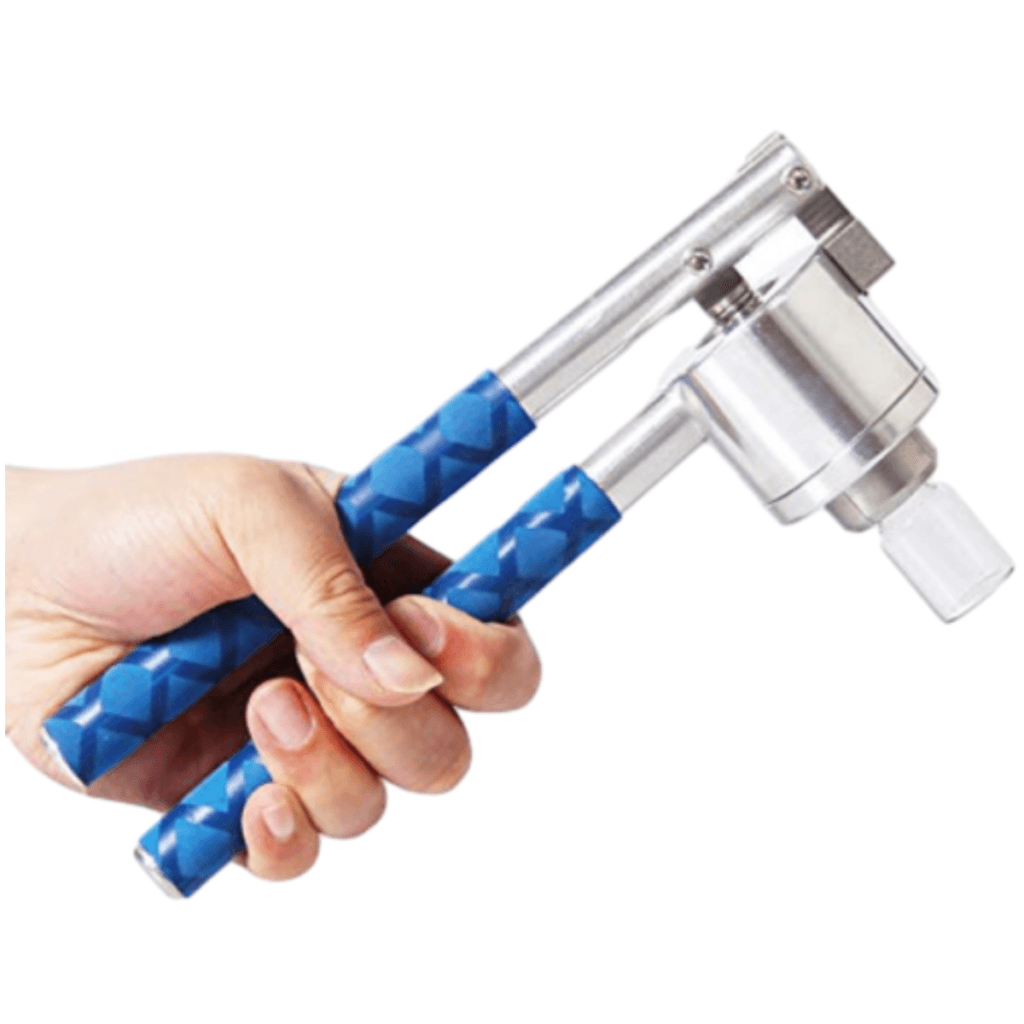

TODAY, we wanna share a product – Vial crimper(Nomal size” 13mm, 20mm“). it’s very important in homemade procedure.
- 13mm decappers for sealing 3ml peptide glass vials + 13mm butyl stopper rubber + 13mm caps ;
- 20mm vials crimper for sealing 10ml steroids glass vials + 20mm butyl rubber stopper. + 20mm flip-off seals;
Specifications (Most Critical for Selection)
These ensure the crimper works with your specific components.
Vial Specifications:
- Finish Size (Flange Diameter): The single most important spec. Must match jaw size (e.g., 13mm, 20mm).
- Vial Outside Diameter (O.D.): Determines the size of the guide belt or chuck that centers the vial.
- Vial Height Range: Min. and max. height the machine can accommodate.
- Stopper Size: Must sit correctly under the aluminum seal.
- Aluminum Seal (Flip-Off Cap) Size: Crimper jaws are designed for specific seal dimensions (e.g., 13mm x 7.5mm).
Example Specification Table (Semi-Automatic Crimper)
| Category | Specification | Example Detail |
|---|---|---|
| Mechanical | Crimp Style | Standard & Tri-lobe capable |
| Compatible Vial Finishes | 13mm, 20mm (interchangeable jaws) | |
| Construction | 304 Stainless Steel frame, anodized aluminum housing | |
| Performance | Speed | Up to 60 vials per minute |
| Height Adjustment Range | 35 mm – 80 mm | |
| Crimping Force | Adjustable, 20-150 kgF | |
| Compatibility | Vial O.D. Range | 16 mm – 40 mm (with appropriate guide rails) |
| Seal Types | Standard flip-off, lyo, and combination seals | |
| Power | Air Supply | 80-100 psi, dry & clean |
| Controls | Operation | Pneumatic foot pedal or two-hand buttons |
| Display | Digital pressure gauge with peak hold | |
| Safety | Features | Emergency stop, protective guard, safety interlock |
| Dimensions | Footprint (WxDxH) | 400 x 350 x 450 mm |
| Weight | 25 kg |
Mechanical & Physical Specifications
- Type: Manual, semi-automatic (pneumatic/electric), or fully automatic.
- Crimp Style: Standard symmetrical crimp or “tri-lobe” (preferred for tamper-evidence and anti-roll features).
- Jaw Compatibility: Designed for specific vial finish sizes (e.g., 13mm, 20mm, 28mm, 32mm). Many crimpers have interchangeable jaw sets.
- Crimping Force: Adjustable and measurable (often in psi or N), critical for process validation.
Machine Construction:
- Frame & Housing: Material (stainless steel, anodized aluminum), weight, and footprint.
- Tooling Material: Hardened stainless steel or coated for durability and cleanability.
Performance & Operational Specifications
Speed (Throughput):
- Manual: Single units per operation.
- Semi-Auto: Typically 30-60 vials per minute (vpm).
- Fully Automatic (In-line): Can range from 100 to 600+ vpm, synchronized with a filling line.
Adjustability:
- Height Adjustment: To accommodate different vial heights (e.g., 30mm to 70mm).
- Crimp Depth/Force Adjustment: Precise dials or digital controls for fine-tuning.
- Pressure Regulation: For pneumatic models, a regulator gauge is essential.
Power Requirements:
- Pneumatic: Required air pressure (e.g., 80-100 psi / 5.5-7 bar), air consumption per cycle.
- Electric: Voltage, frequency, power rating.
- Noise Level: Typically expressed in dB(A).
Others we offer:
10ml glass vials, 3ml glass vials.… clear vials;
butyl rubber stopper, with different color, grey, black, short or longer….
flip-off caps, with different color.
empty capsules with different size;
if you wanna know more, please directly visit our online store: https://www.zxvialsupplies.com
THANKS FOR YOUR TIME AND READ, IF YOU HAVE ANY QUESTIONS, PLEASE FREE TO CONTACT US!
HAVE A NICE DAY!
ZX VIAL SUPPLIES
